Citrix Listener

The following documentation content might not be fully up to date since content here refers to an older version or is currently being reviewed. Come back later to check status.

Description

The Citrix listener plugin collects data from Citrix and sends it to 1Gateway as messages. The messages sent will then be processed in the core and sent on to the senders configured.

Prerequisites

Citrix XenDesktop v7 or later

Installation

Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.

Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).

2 - System Maintenance

Click on the menu icon and choose the option "System maintenance"

3 - Upload file

In the System maintenance view you can either drag and drop the downloaded zip file or select it by clicking the "choose file" button.

4 - Restart

After the upload installation will be confirmed. Restart 1Gateway to ensure any locked files are updated.

Configuration

Open the main menu and click on "New plugin"

Select the plugin you want to configure. Use the Filter field if needed.

The Citrix configuration consists of the generic fields that every plugin needs as well as the specific Citrix fields:

Field name	Supported values	Description
server	Valid ip address or hostname	Citrix server.
user	Any string	Username for the ntlm authentication.
password	Any string	Password for the ntlm authentication.
domain	Any string	Domain for the ntlm authentication.
Sessions per host interval	Any integer	Poll interval (default is 300) in seconds of sessions per host data (only if item is selected).
Number of connected sessions interval	Any integer	Poll interval (default is 300) in seconds of number of connected sessions data (only if item is selected).

The type of information that needs to come out of Citrix also needs to be configured (by selecting item and setting polling interval):

Number of connected sessions.
Sessions per host: get session information for each host.

Advanced configuration

The advanced configuration of the Citrix listener plugin includes more fields that allow further configuration. The fields in the advanced configuration are:

Field name	Supported values	Description
Suffix of the Citrix endpoint	Valid Odata query	Odata query that defines the information to get from Citrix.
Message type	Any string	Message type of incoming messsages from Citrix. Used in mappers used to convert messages to normalized metrics and events.
format	"single"	Specifies that the resulting data must be interpreted as one message.

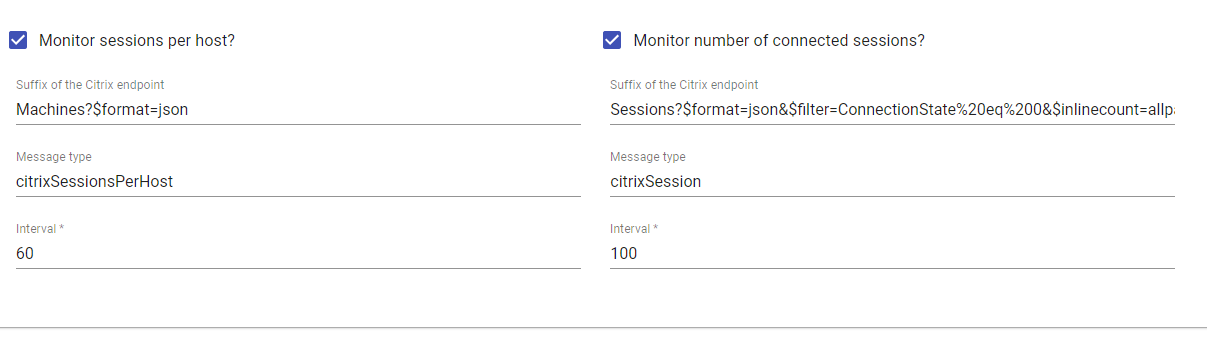

Image 2. Citrix listener advanced plugin configuration
