Collectd Listener

The following documentation content might not be fully up to date since content here refers to an older version or is currently being reviewed. Come back later to check status.

Description

The Collectd plugin processes Collectd messages from a Qpid queue. Collectd sends messages to a Qpid queue (through amqp protocol). The Collectd queue is configured through the Qpid listener (subscriber) plugin.

Prerequisites

• Install and configure a Qpid Java Broker.
• Install Collectd and configure the Collectd plugin for Qpid.
  1. Download and install Collectd from {+}https://collectd.org/download.shtml+
  2. Install and configure the Qpid plugin for Collectd: {+}https://github.com/bendoerr/collectd-write-qpid-json+
  3. Add the plugin to the Collectd configuration found in the file /etc/collectd/collectd.conf

Globals true

        ModulePath "/opt/collectd"
        Import write_qpid_json

    #TypesDB "/opt/collectd/share/collectd/types.db"
    TypesDB "/opt/collectd/etc/types.db"
    Host "192.168.0.175"
    Port "5672"
    User "guest"
    Password "guest"
    Exchange "collectd"

<span id="mce_SELREST_start" style="overflow:hidden;line-height:0;"></span>

This requires Qpid python libraries.

• Configure a queue for Collectd in the Qpid Java Broker installed.
  1. Set up a queue called collectd
  2. In the Qpid broker web administration interface go to Broker > AMQP and click Edit. Change authentication provider to anonymous. And Save Port.

Installation

Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.

Configuration

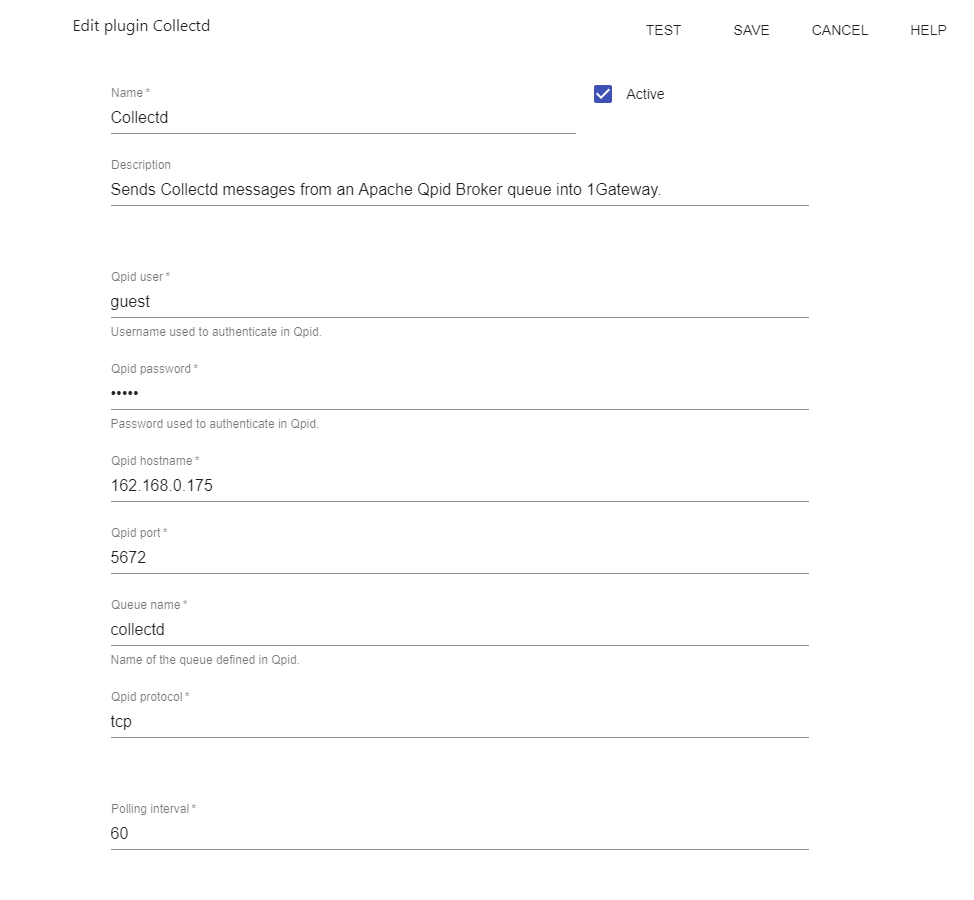

Open the main menu and click on "New plugin"

Select the plugin you want to configure. Use the Filter field if needed.
