MQTT Listener
Description
The MQTT listener plugin connects to a MQTT broker and sends messages into 1Gateway.
Prerequisites
The MQTT listener requires the 1Gateway plugin SDK version 2.5.5.
Installation
Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.
1 - Login
Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).
2 - System Maintenance
Click on the menu icon and choose the option "System maintenance"
3 - Upload file
In the System maintenance view you can either drag and drop the downloaded zip file or select it by clicking the "choose file" button.
4 - Restart
After the upload installation will be confirmed. Restart 1Gateway to ensure any locked files are updated.
Configuration

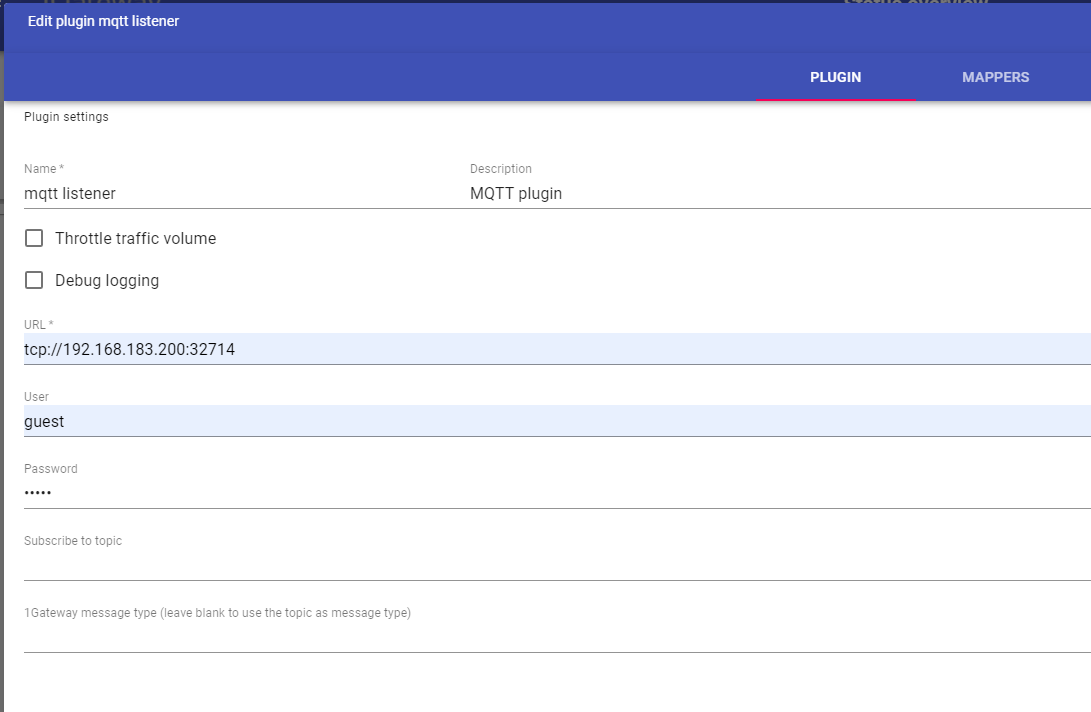

Open the main menu and click on "New plugin"
Select the plugin you want to configure. Use the Filter field if needed.
Field name | Supported values | Description |
|---|---|---|
URL | Any string | Configure the connection to the MQTT broker, include protocol and port information |
user | Any string | user name |
password | Any string | password |
Subscribe to topic | Any string | Define whicht topics you want to be insert into 1Gateway. No messages will be inserted if this field is left empty. |
Any string |
