The PRTG listener polls the specified PRTG Server and puts a message in 1Gateway for every device/service PRTG monitors.
Prerequisites
Installation
Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.
1 - Login
Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).
2 - System Maintenance
Click on the menu icon and choose the option "System maintenance"
3 - Upload file
In the System maintenance view you can either drag and drop the downloaded zip file or select it by clicking the "choose file" button.
4 - Restart
After the upload installation will be confirmed. Restart 1Gateway to ensure any locked files are updated.
Configuration

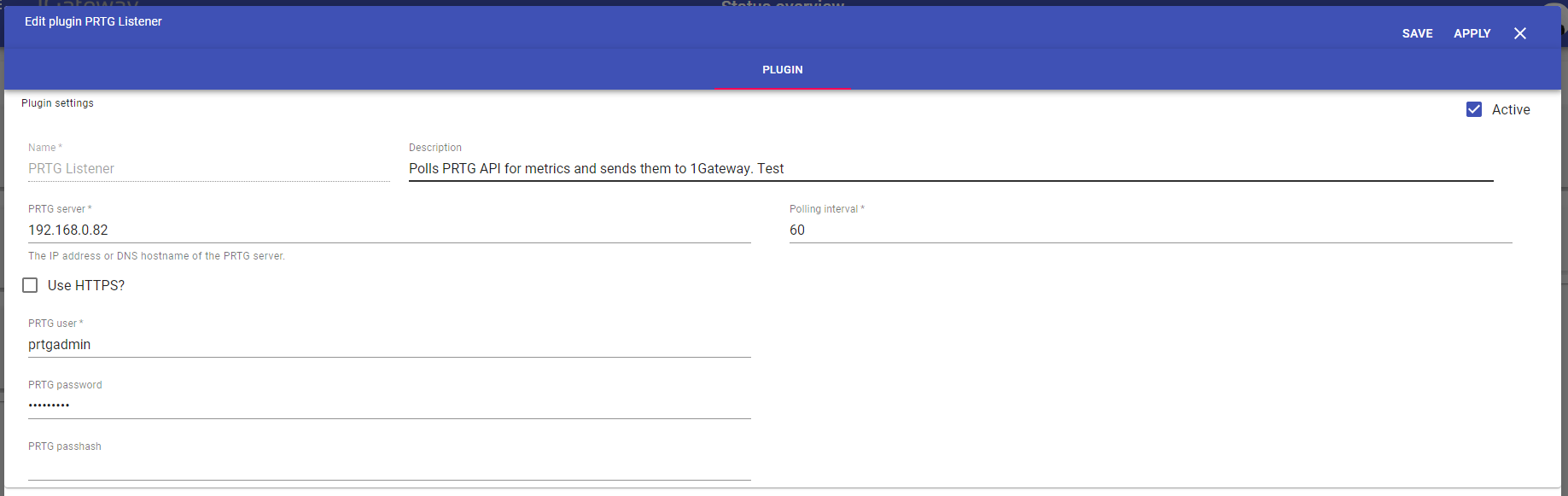

Open the main menu and click on "New plugin"
Select the plugin you want to configure. Use the Filter field if needed.
Open the main menu and click on "New plugin"
Select the plugin you want to configure. Use the Filter field if needed.
Field name
Supported values
Description
PRTG server
Valid ip address or hostname
PRTG server
PRTG user
Any string
PRTG username
PRTG password
Any string
PRTG password
PRTG passhash
Any string
PRTG passhash
Polling interval
Any integer
Polling interval in seconds (default is 300)
Only one of password/passhash is required. Passhash takes precedence if both are defined. Passhash is generated by PRTG for the user.
