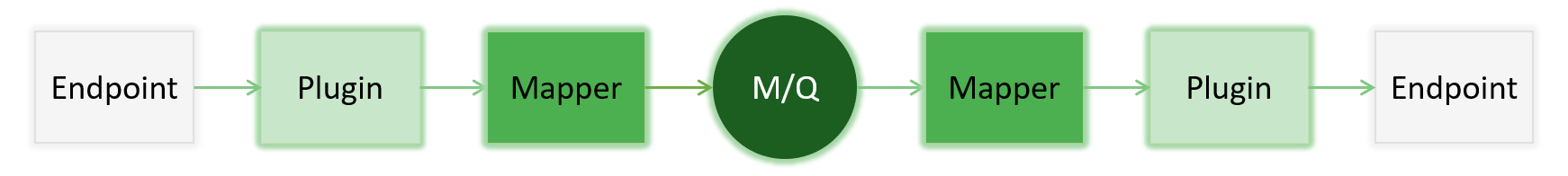

Image 2. Message flow in 1Gateway

Inbound plugins collect messages from an outside source (endpoint). Incoming messages are normalized and routed to the outbound plugins. Before an outbound plugin forwards a message to its endpoint, it can use a mapper to translate the normalized message into an endpoint-specific format. A "normalized message" is a message that has a format that is not endpoint-specific and contains a minimum standard set of keys. See the messages for more detail. Each outbound plugin has a message queue. When a queue is full, messages are discarded. Queues are drained or saved to disk during graceful shutdown.

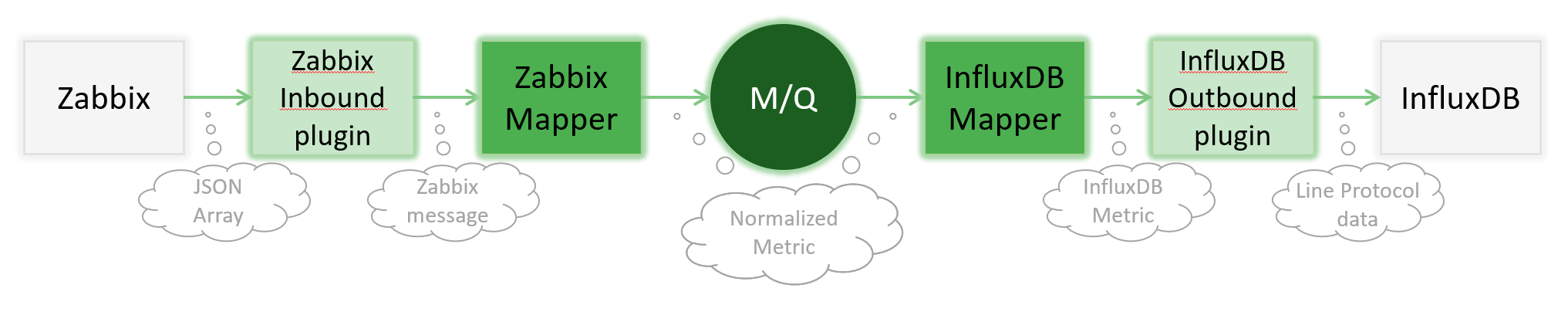

Image 3. Example of message flow in 1Gateway
