CA UIM Listener

Description

The Nimsoft listener sends messages (QOS metrics and events) from CA-UIM into 1gateway.

Prerequisites

A Nimsoft queue needs to be configured

Installation

Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.

Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).

2 - System Maintenance

Click on the menu icon and choose the option "System maintenance"

3 - Upload file

In the System maintenance view you can either drag and drop the downloaded zip file or select it by clicking the "choose file" button.

4 - Restart

After the upload installation will be confirmed. Restart 1Gateway to ensure any locked files are updated.

Configuration

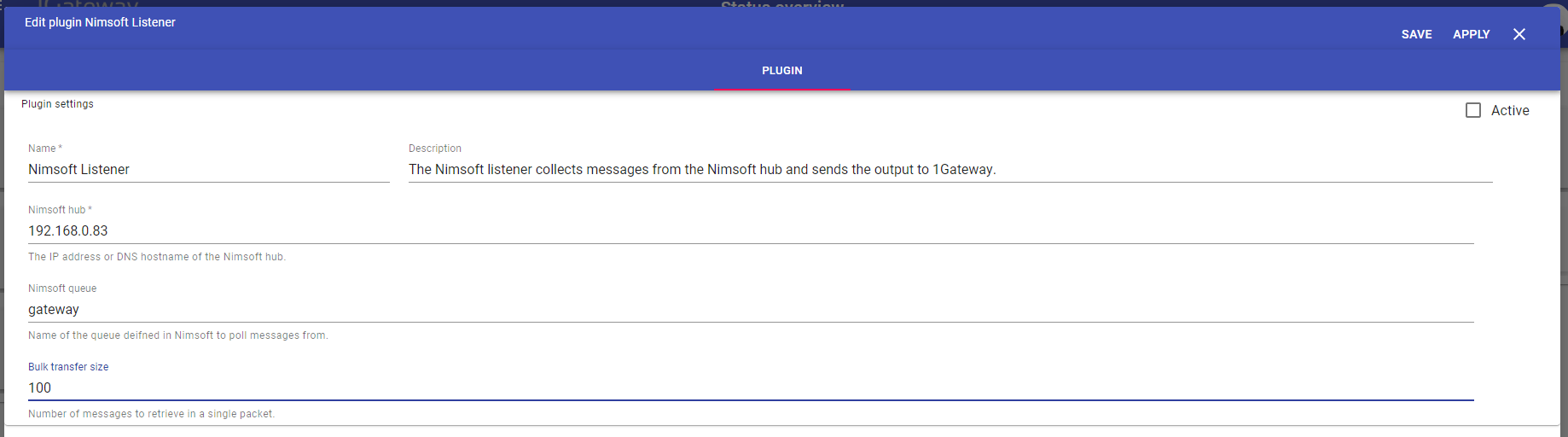

Open the main menu and click on "New plugin"

Select the plugin you want to configure. Use the Filter field if needed.

Field name	Supported values	Description
Nimsoft hub	Valid ip address	Nimsoft hub
Nimsoft queue	Any string	Name of the queue defined in Nimsoft to poll messages from
Bulk transfer size	Any integer	Number of messages to retrieve in a single packet
