SNMP Listener
Description
The SNMP listener gets data through SNMP and publishes it as messages to 1Gateway.
Prerequisites
None
Installation
Make sure you have the Plugin zip file that has been provided to you with the installation files.
1 - Login

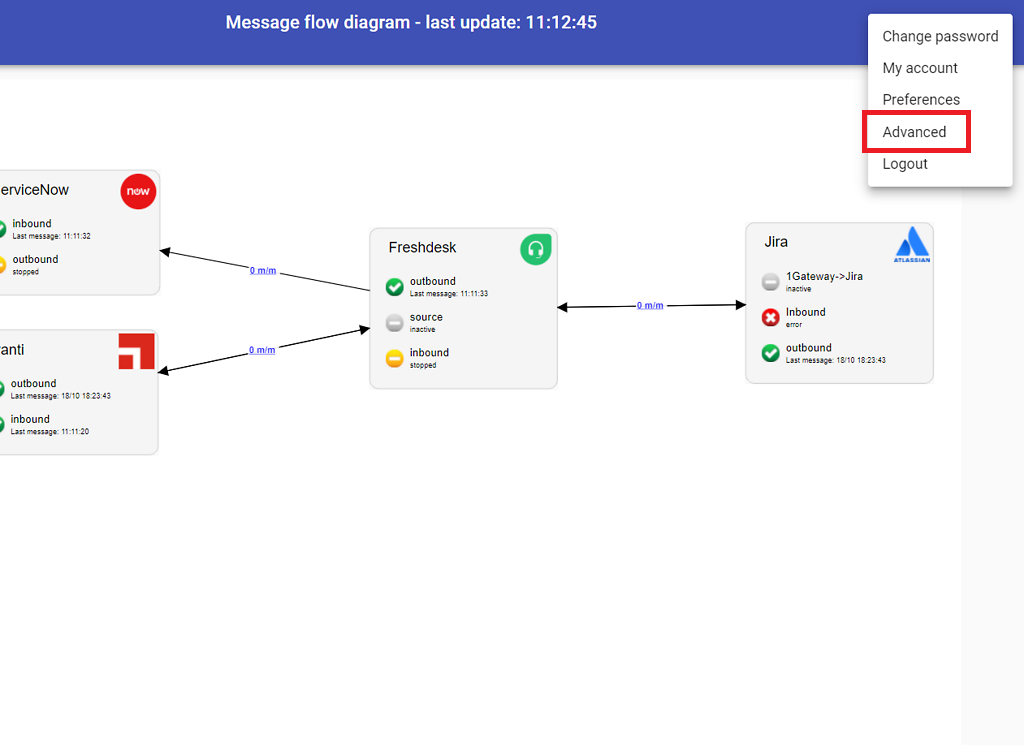

Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).
2 - System Maintenance

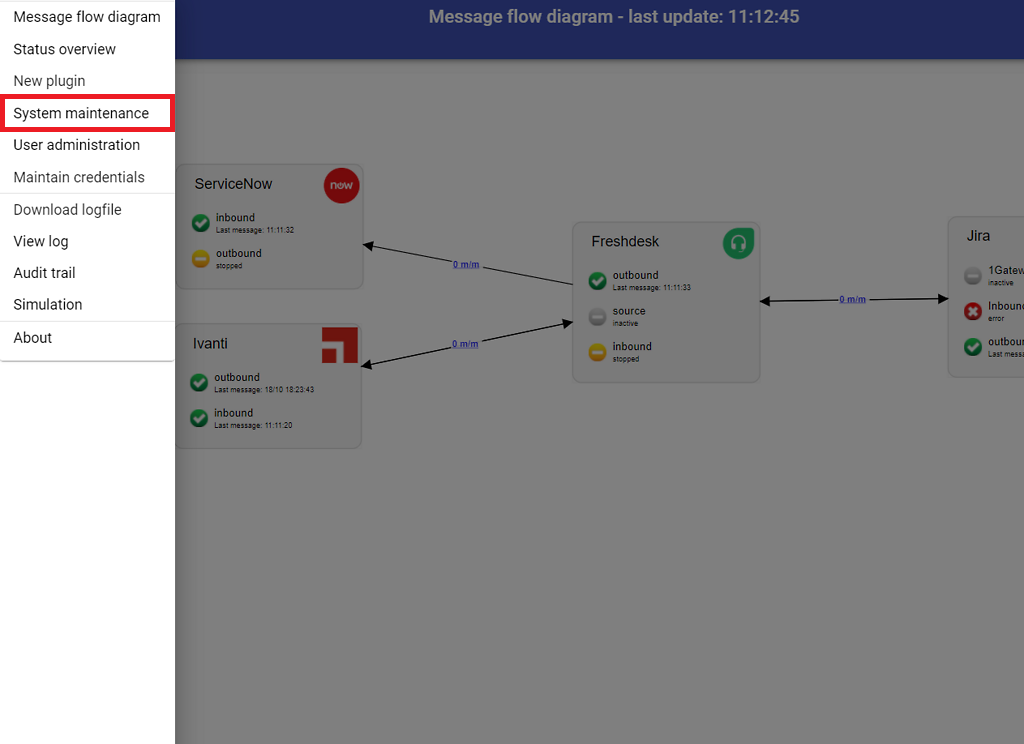

Click on the menu icon and choose the option "System maintenance"
3 - Upload file

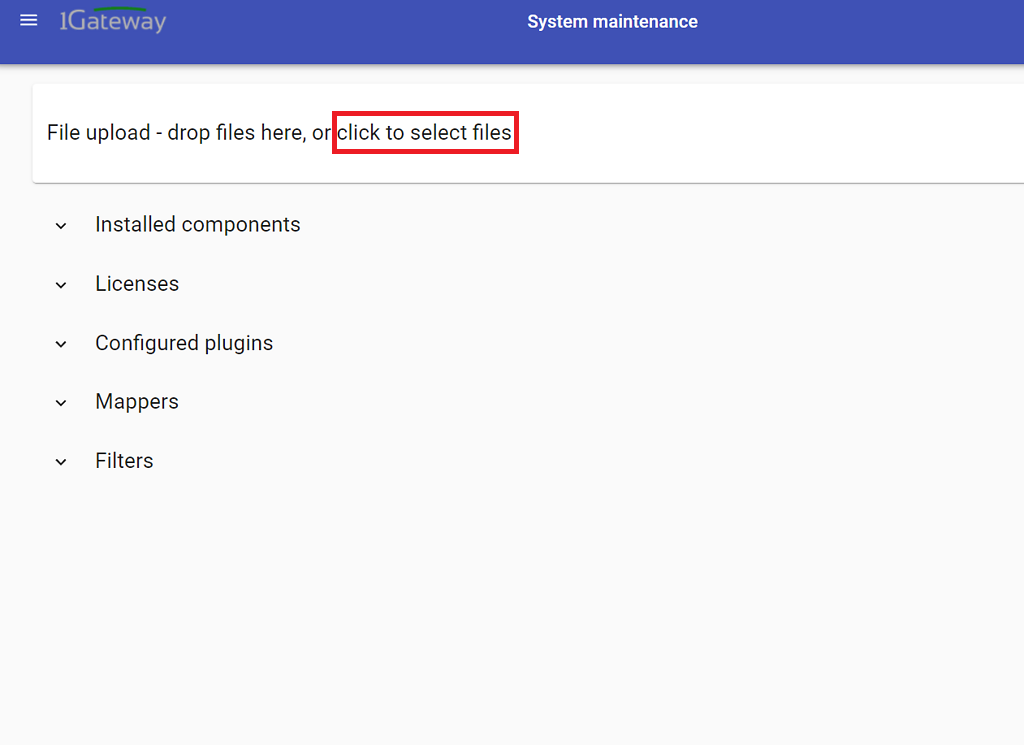

In the System maintenance view you can either drag and drop the downloaded zip file or select it by clicking the "choose file" button.
Configuration

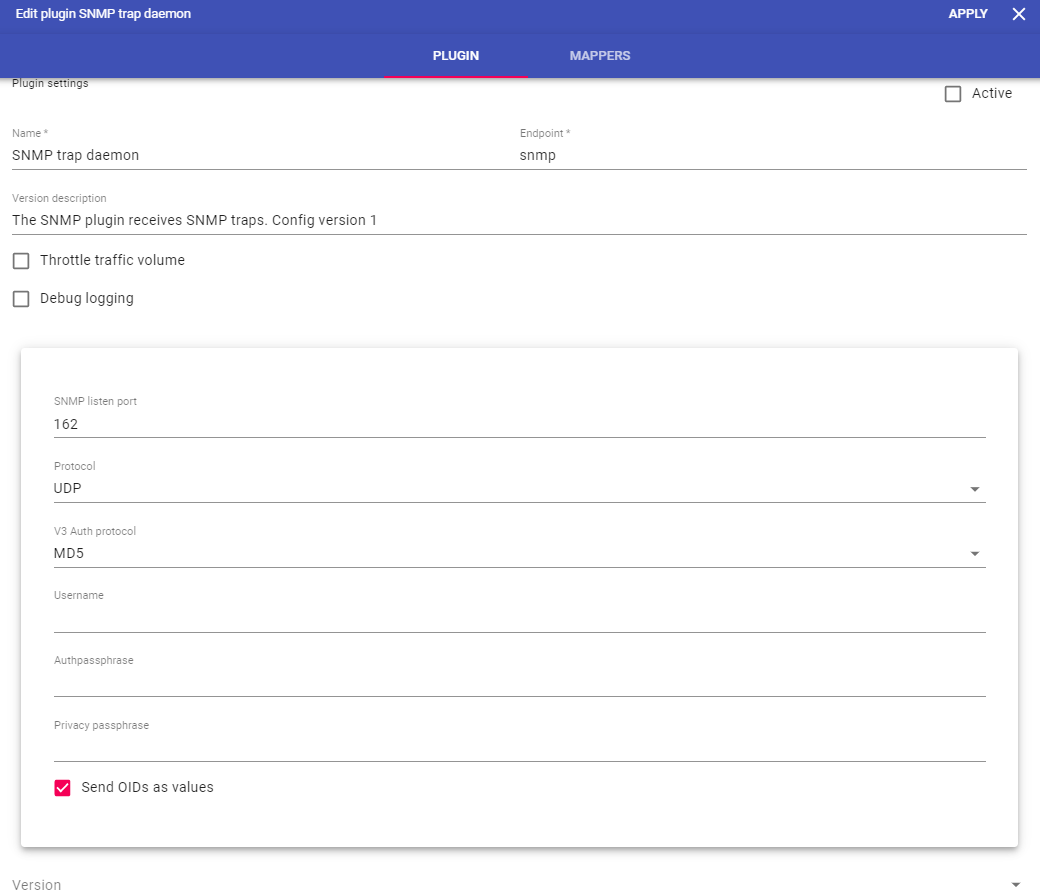

Open the main menu and click on "New plugin"
Select the plugin you want to configure. Use the Filter field if needed.
Field name | Supported values | Description |
|---|---|---|
SNMP listen port | Valid port number | SNMP listen port |
Protocol | UDP / TCP | Protocol used |
V3 Auth protocol | MD5 / SHA | For SNMP V3, authentication protocol used |
Username | POP3, IMAP, POP3 with SSL, IMAP with SSL/TLS | Type of connection to the email server |
Authpassphrase | Any string | SNMP V3 Authentication phrase |
| Privacy passphrase | Any string | SNMP V3 Privacy phrase. |
| Send OIDs as values | Tickbox | If true, sends OIDs as message values instead of message fields. See example below. |

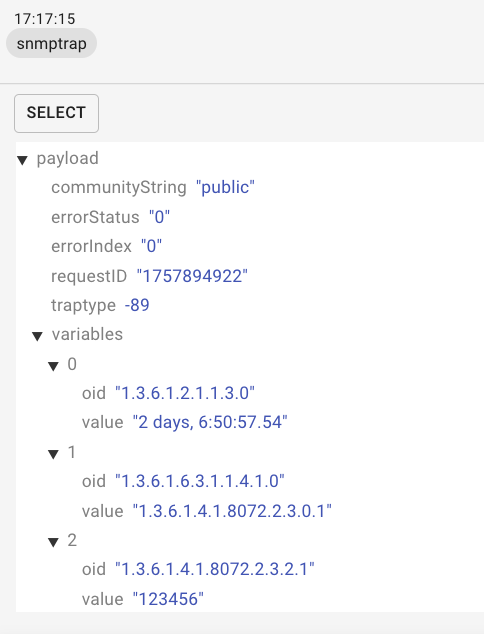

Checked Send OIDs as values

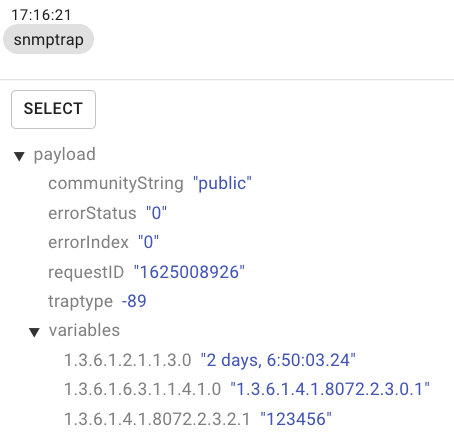

Un-checked Send OIDs as values
For more information on SNMP V3 authentication and privacy, go to https://www.rfc-editor.org/rfc/rfc2574.html
