Zabbix listener

Description

The Zabbix Listener plugin sends metrics from Zabbix into 1Gateway.

Prerequisites

The Zabbix listener plugin uses 2 JSON files called items.json (metrics) and triggers.json (alarms) which includes the definition of the metrics and alarms to be retrieved. If needed, edit this files to include a valid search query.

Installation

Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.

Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).

2 - System Maintenance

Click on the menu icon and choose the option "System maintenance"

3 - Upload file

In the System maintenance view you can either drag and drop the downloaded zip file or select it by clicking the "choose file" button.

4 - Restart

After the upload installation will be confirmed. Restart 1Gateway to ensure any locked files are updated.

Configuration

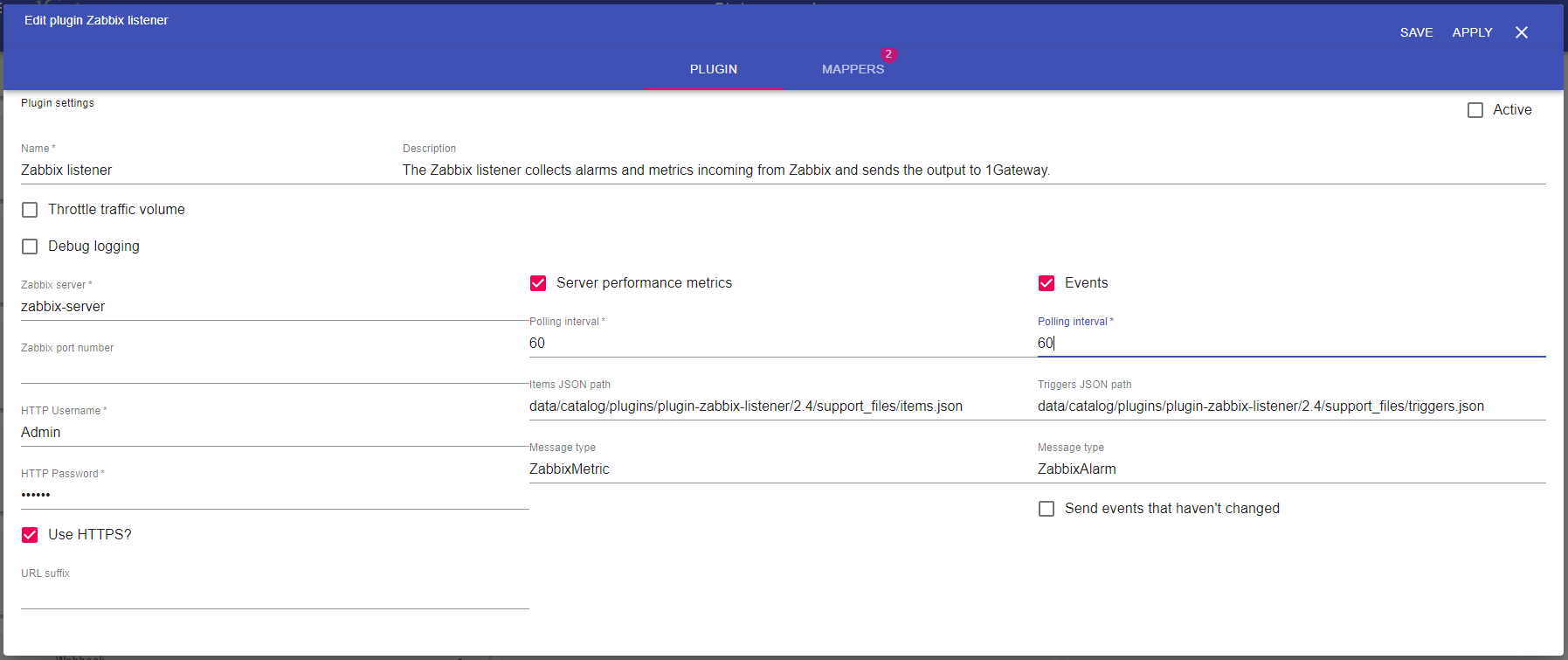

Open the main menu and click on "New plugin"

Select the plugin you want to configure. Use the Filter field if needed.

Field name	Supported values	Description
Zabbix server	Valid IP address or hostname	Zabbix server
Zabbix port number	Valid port number	Port number to use to connect to the Zabbix server
HTTP username	Any string	HTTP authentication user
HTTP password	Any string	HTTP authentication password
Server performance metrics Polling interval	Any integer	Polling interval in seconds (default is 300). For it to work, the Server performance metrics checkbox needs to be ticked
Events Polling interval	Any integer	Polling interval in seconds (default is 300). For it to work, the Events checkbox needs to be ticked

Advanced configuration

The advanced configuration of the Zabbix listener plugin includes the message type of incoming messages from Zabbix to 1Gateway. This message type is used in the mappers used to convert the messages Zabbix sends into normalized formats.

Server performance Metrics

For this to take effect the Server performance metrics checkbox must be checked.

The items JSON path field is the path to the file that defines what to poll from Zabbix.

Field name	Supported values	Description
Items JSON path	Valid path	Path to items JSON file
Message type	Any string	Message type

The items.json file contains the body (in JSON) used to poll for metrics.

Events

For this to take effect the Events checkbox must be checked.

The triggers JSON path field is the path to the file that defines what to poll from Zabbix.

Field name	Supported values	Description
Triggers JSON path	Valid path	Path to triggers JSON file
Message type	Any string	Message type
Send events that haven't changed	Checkbox	By default, only changed events (triggers) are fetched from Zabbix, if you enable this checkbox, you get the state for each trigger on each Interval

The triggers.json file contains the body (in JSON) used to poll for events (triggers).
