The system maintenance page is used to check the installed and configured components such as plugins, mappers and filters. It also includes the available licenses of the product.

Install a new plugin or license

Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.

1 - Login

Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).

2 - System Maintenance

Click on the menu icon and choose the option "System maintenance"


3 - Upload file


In the System maintenance view you can either drag and drop the downloaded plugin zip or license.json file or select it by clicking the "choose file" button.

4 - Restart

After the upload installation will be confirmed. Restart 1Gateway to ensure any locked files are updated.

Installed components

To view a list of the installed components, click on the arrow. Here there are details about the installed plugins, the version that is active and a short description on the functionality included in the plugin.



Licenses

The licensed components can be viewed in the licenses table. An enterprise license includes the license for all available plugins.


Configured plugins

This table shows a list of configured plugins in production and in draft mode. The plugins in production can be active or inactive. The plugins in draft mode can be edited and put into production.

If there is a plugin in both production and draft mode it means that the last made changes are not in production yet.

Mappers

This table shows a list of configured mappers in production and in draft mode. The mappers in production are the ones used to convert messages. The mappers in draft mode can be put into production.

If there is a mapper in both production and draft mode it means that the last made changes are not in production yet.

Available actions:

  • Download mapper configuration file in JSON
  • Delete a user defined mapper configuration
  • Copy mapper configuration from production to draft
  • Put a draft mapper in production

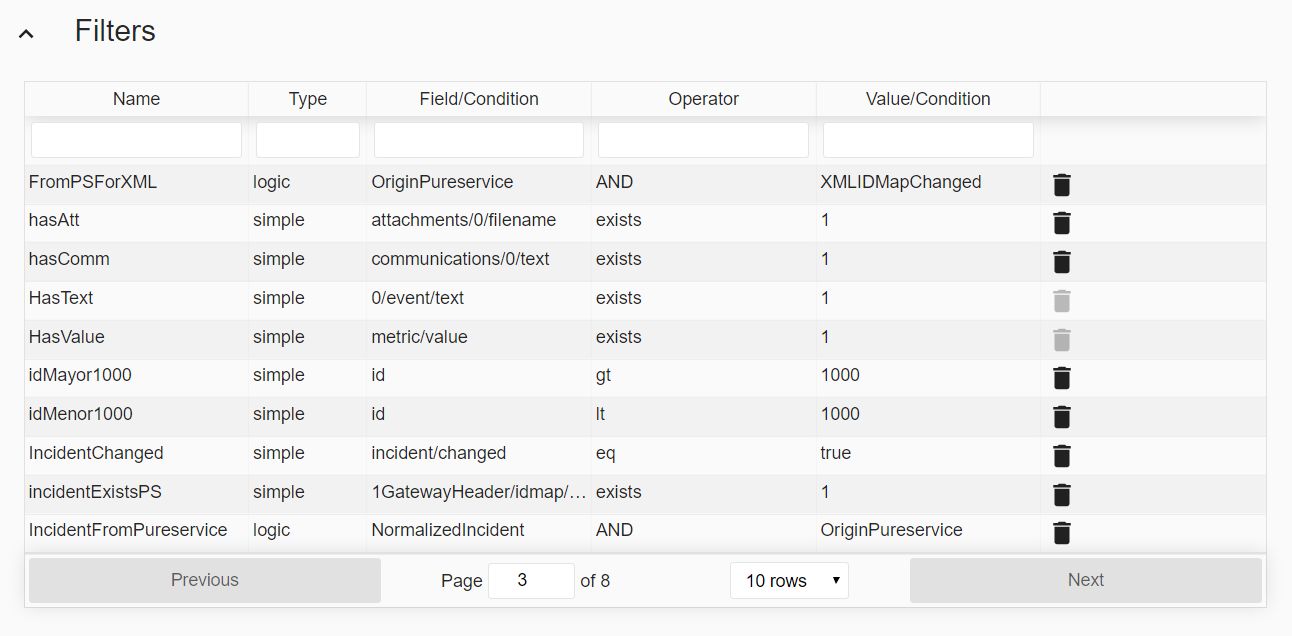

Filters

This table shows an overview of the filters in the system. The best practices filters cannot be deleted, but can be edited. User defined filters can be deleted and modified.
