Jira to TestAutomation integration

 Image 1. Jira listener plugin configuration

Jira configuration

For the Jira - Test Automation integration to work optimally, a number of custom fields and workflow transitions are required in Jira.

Jira setup instructions

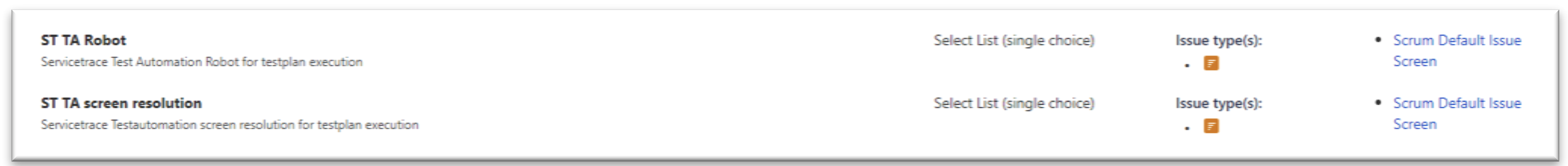

1. Create two custom field: ST TA Robot and Custom ST TA screen resolution for the testplan issue type (Jira Administration -> Issues -> Custom Fields)

ST TA Robot: select list (single choice). Here you should make a list from your Servicetrace robot names (not robot ID)

ST TA Screen resolution: select list (single choice). Here you should insert the screen resolution you use in Servicetrace Test Automation Workflows (for example: 1920x1080 or 1920x1200)

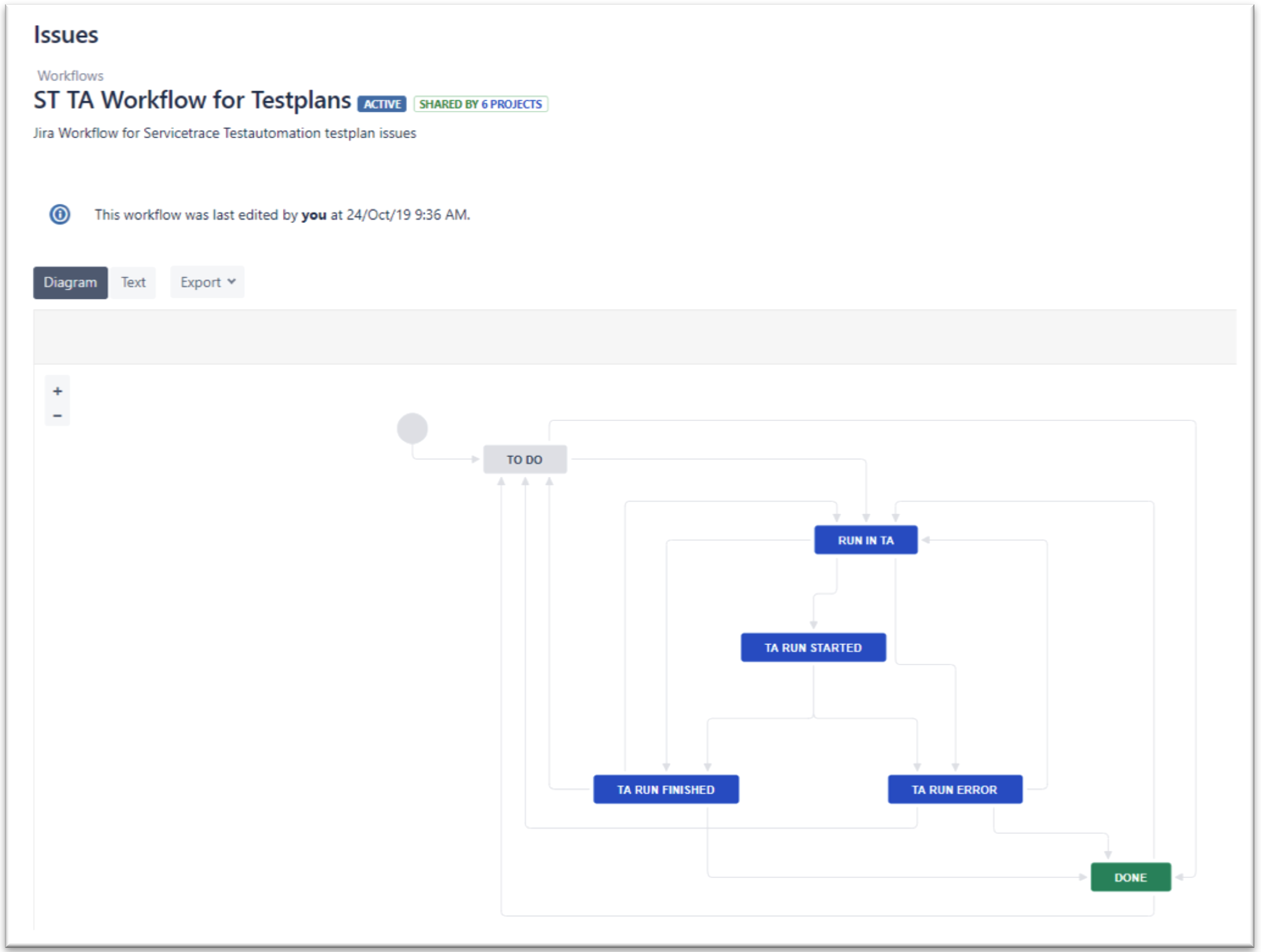

2. Import the ST TA Workflow in your system. (Jira Administration -> Issues -> Workflows)

• Create your projects in Jira (classic project, not next-gen project)
• Enable Xray for the projects (make sure you have the Xray issue types, at least Test, Epic, Test Execution, Test Plan and Story)

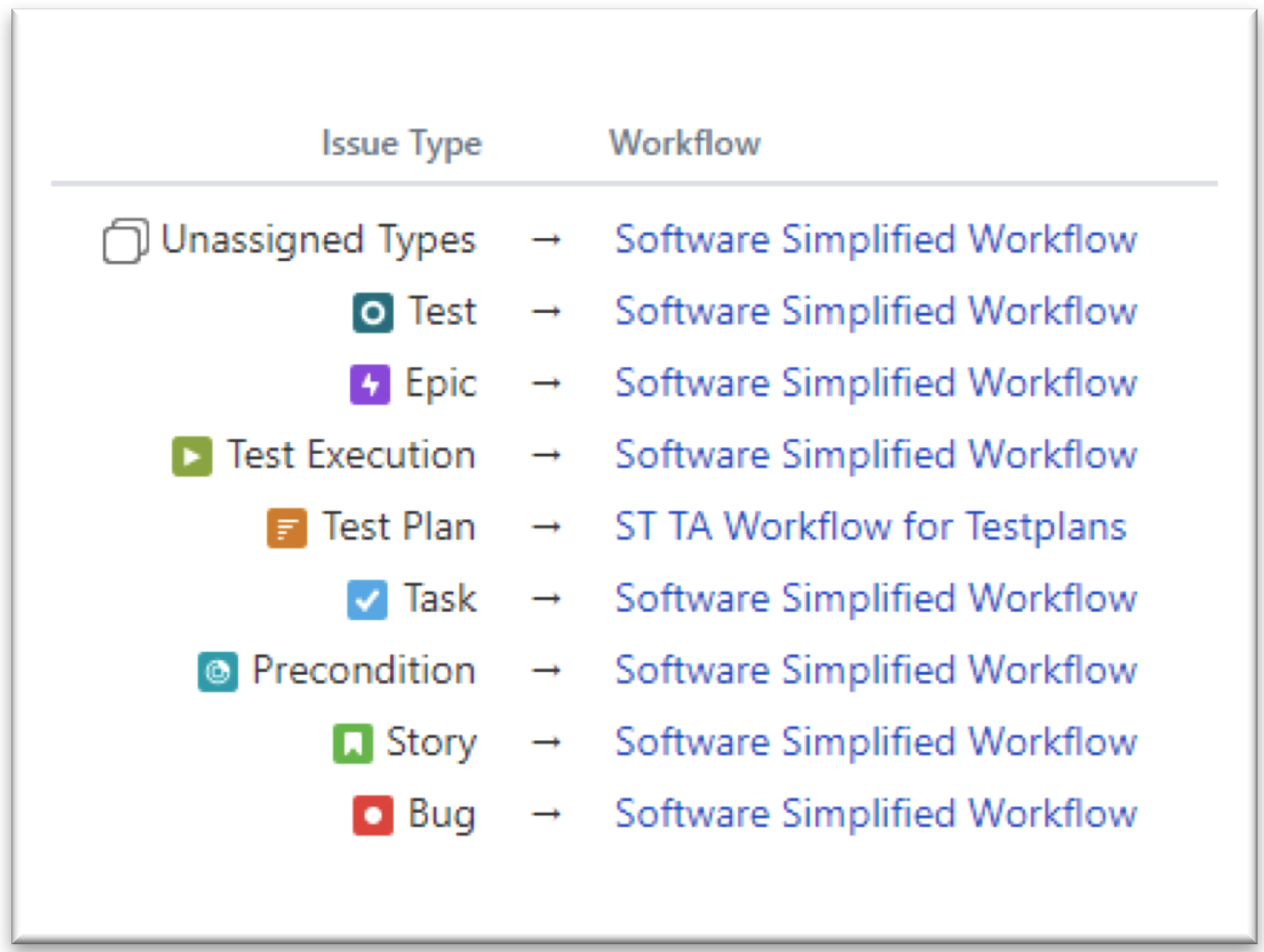

• In project settings enable the ST TA Workflow for the Test Plan issue type

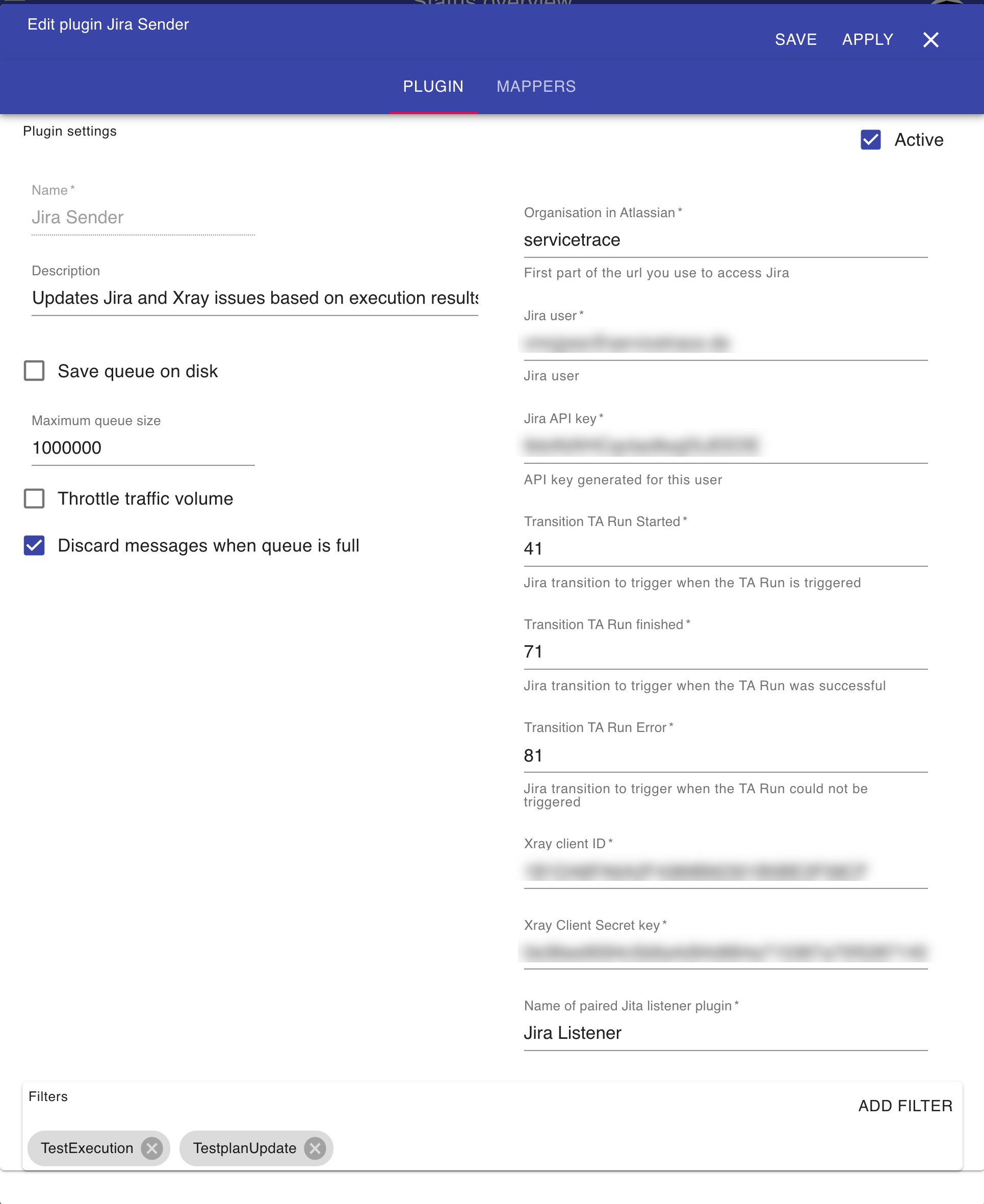

Configure your 1Gateway plugins: insert your transition Ids of the Jira testplan workflow into the Jira Sender plugin and your project keys into the plugin configuration.

Now you should see all your selected Jira projects in Servicetrace Testautomation.

This documentation is for the on-premise edition of 1Gateway. The SaaS edition is documented in the customer portal.

Requirements

Minimum installation requirements are:

• Java 1.8
• MySQL 8
• 2 CPU cores
• 8GB RAM
• 4GB free disk space

For a busy production system we recommend 16GB RAM and 4 CPU cores.

The UI is supported on Google Chrome and Firefox.

1Gateway is packaged in three different ways:

• as a windows installer
• as a zip file
• as a Docker image

Docker installation

To install 1Gateway as a Docker container (including mysql), run this command (docker-compose.yaml is located in the 1Gateway Root Directory):

docker-compose up

For the next steps, jump to plugin and license installation

Zip installation

To install 1Gateway from the zip file, simply extract the zip file to a folder of your choice and run the startup shell script. For the next steps, jump to plugin and license installation

Windows installation

As a user with administrator rights, run the Windows installer. The installer package for windows is called 1Gateway-2.3-[buildinfo].exe.

Detailed windows installation instructions here.

Run 1Gateway-2.3-buildinfo.exe

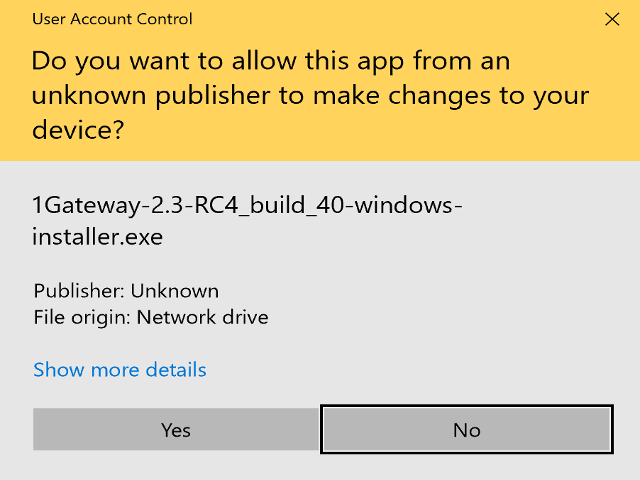

If this window appears, click on Yes

---

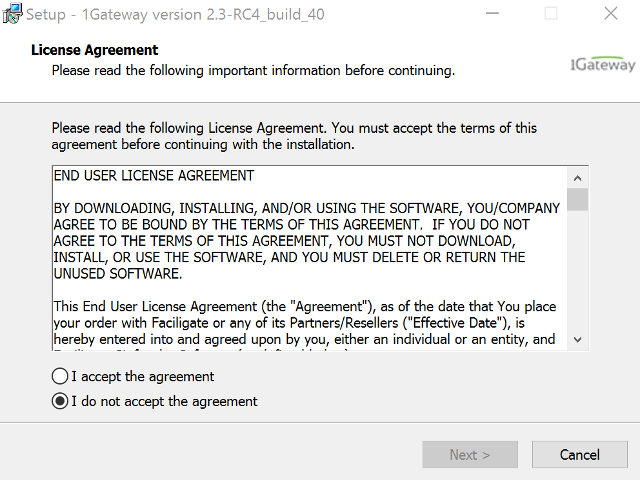

Accept the EULA

Accept the 1Gateway EULA

---

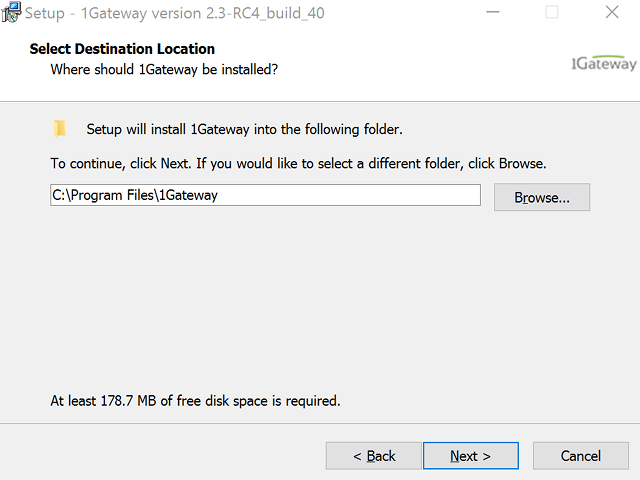

Select folder

Next

---

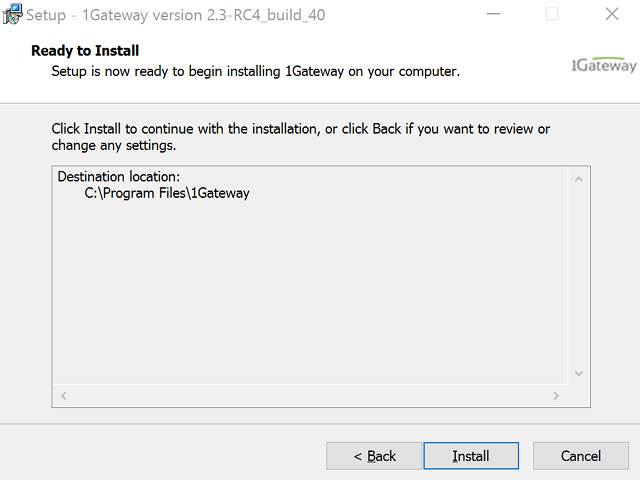

Install

Click on "Install"

---

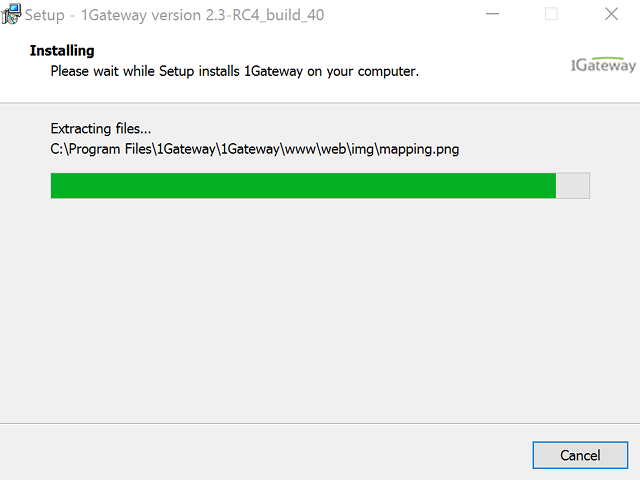

Watch progress

Pay close attention to the progress bar as it inches to completion

---

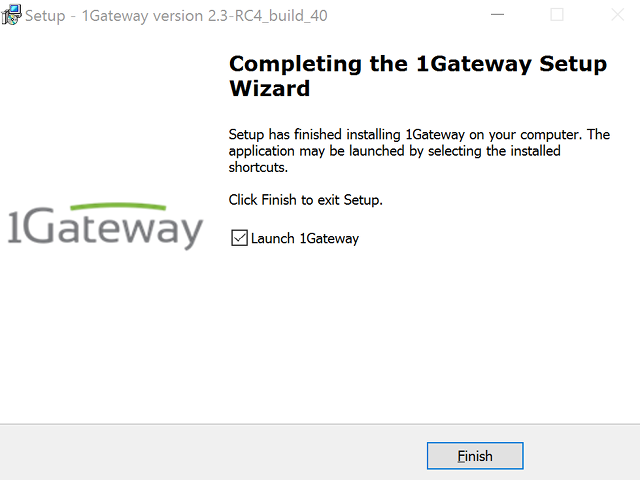

Finish

1Gateway is now installed and running as a service.

Log in to 1Gateway

Launch a browser, preferably Chrome, and navigate to http://your-1gateway-server:8090. Login as user admin, password admin.

Install plugins and licenses

Make sure you have the 1gateway zip file that includes the plugin files and valid licences information ready. This file has been provided to you with the installation files.

1 - Login

Login to 1gateway, and make sure you are in "Advanced mode". If this is the first time you log in, the default user and password are both 'admin' (without the quotes).

2 - System Maintenance

Click on the menu icon and choose the option "System maintenance"

3 - Upload file

In the System maintenance view you can either drag and drop the downloaded zip file or selected it by clicking the "choose file" button.

4 - Restart

After the upload installation will be confirmed. Restart 1Gateway to ensure any locked files are updated.
