Mapper User Interface

The Mapper interface is divided into two main sections described below:

  • Mapper configuration within a plugin (in red)
  • Mappings within a mapper (in green)

Mapper UI Breakdown

Mapper Configuration​

At the top of the screen, you’ll find the Mapper List, which displays all mappers configured for the selected plugin. Add Mapper Screenshot In this example, we have a incident2freshdesk mapper and a feedback2incident mapper.

Each individual mapper has its own configuration and version history. Below the list are the mapper related settings:

  • Source → Target Message Types:
    Shows the message types that the mapper accepts and produces (visual only).

    Message types

  • Settings:
    Opens the configuration window where you can define mapper-specific settings, including source and target message types.

    Settings button

  • History:
    Displays version history for the mapper, allowing you to restore a previous version if needed.

    History button

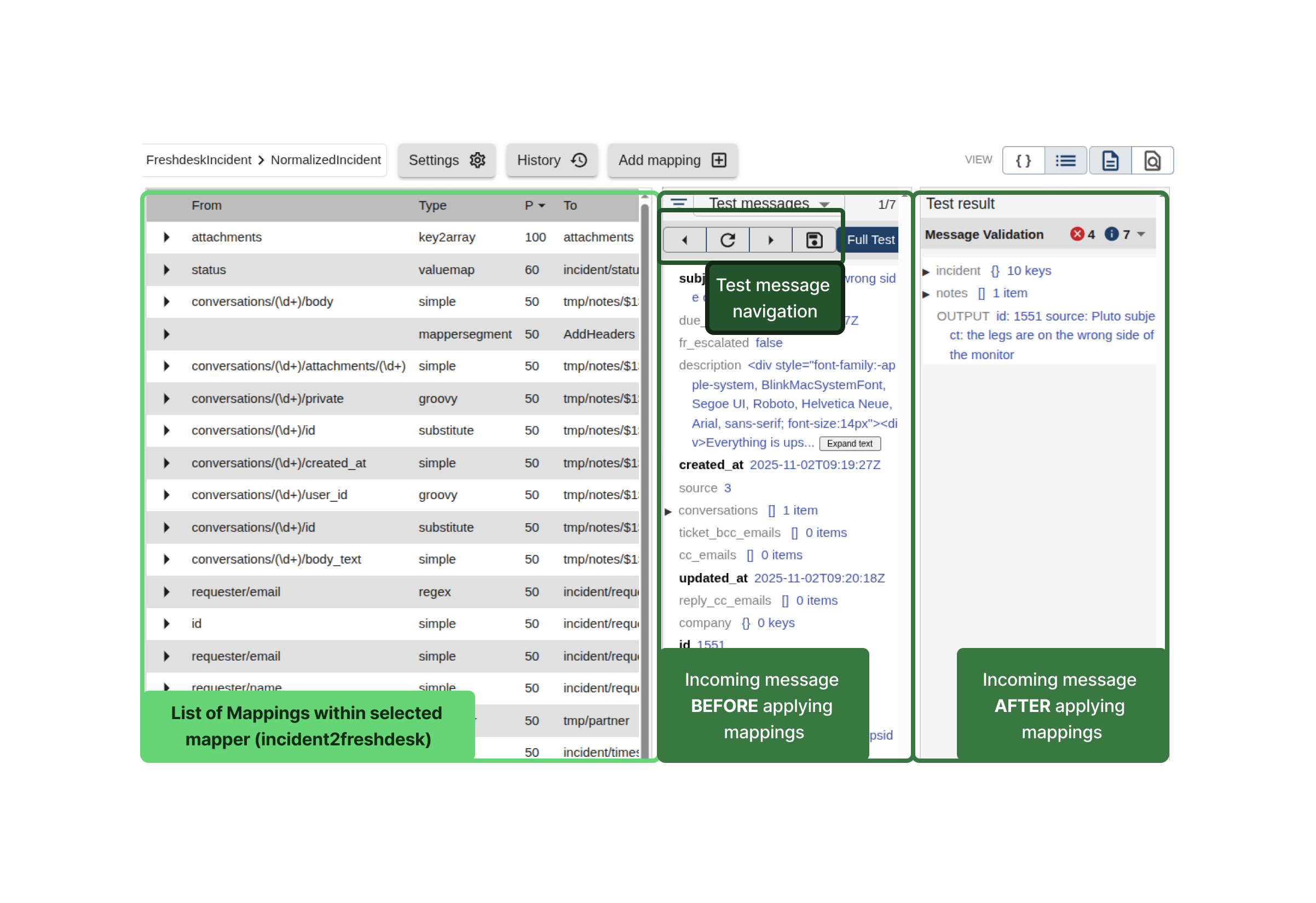

Mappings within a mapper​

The green section highlights the Mappings Panel, where you can view and test all field-level mappings contained in the selected mapper.

Mappings

  1. Mappings List (Left):
    Displays all mappings defined within the mapper. Each mapping performs a specific transformation or rule.

  2. Test Panel (Center & Right):
    Allows you to preview how messages are transformed.

    • Test message: Message before mappings are applied.
    • Test result: Message after mappings are applied.
  • Test message navigation:

Test message navigation

  • You can browse through available incoming messages using the menu buttons
  • Full test button: Executes a full test, including API calls within the mapper.
  • You can test with messages retrieved from connected endpoints, or Uploaded manually via Saved Messages.
info

Learn more about Testing Mappers.
