Inbound Email

Outgoing Description

The Email listener reads email messages from a configured email account through IMAP or POP3 and sends them to 1Gateway. Supports attachments.

Outgoing Prerequisites

• (Optional) Create a directory where to move the emails to after they are read.
• If needed, enable POP3 protocol on the email server

Inbound Configuration

Field Name	Supported Values	Description
Email server	Any string	Email server to connect to
Email user	Any valid email address	Email address from which to obtain emails
Password	Any string	Password of the email user
Authentication type	Basic, OAuth2	Type of authentication to use when connecting to the email server
Server type	POP3, IMAP, POP3 with SSL, IMAP with SSL/TLS	Protocol to use when connecting to the email server
OAuth Client ID	Any string	Only used if OAuth2 authentication type is selected. OAuth Client ID used for the authentication.
OAuth Client Secret	Any string	Only used if OAuth2 authentication type is selected. OAuth Client Secret used for the authentication.
Tenant ID	Any string	Only used if OAuth2 authentication type is selected. OAuth Tenant ID used for the authentication.
Scope	Any string	Only used if OAuth2 authentication type is selected. OAuth Scope used for the authentication.
Token URL	Valid URL	Only used if OAuth2 authentication type is selected. OAuth Token URL used for the authentication.
Grant type	Any string	Only used if OAuth2 authentication type is selected. OAuth grant type used for the authentication.
Get only new mail	true / false	If set to true, only unseen emails will be retrieved by the plugin. Only works on IMAP/s. Only IMAP/s protocol can set search criteria when retrieving mail.
Action to take after reading emails	Mark as seen, Delete, Move to write folder	Defines what to do with an email after it's read. Move to write folder only works on IMAP/s protocol.
Number of messages	Any integer	Number of emails to retrieve each poll cycle. Leave empty if all mail should be retrieved.
Read folder	Any string	Name of the directory from which to read emails.
Write folder	Any string	Directory to move the emails to after they are read (only used if the "Move to write folder" option is selected).
Email content format	TEXT, JSON, XML, DELIMITED	Format of the content of the email
Delimiter between fields	"Newline" or any character	Defines the delimiter between fields to use in the message (only used if the DELIMITED format is selected).
Delimiter between key and value	Any character or string	Defines the delimiter between the key and value of the message fields (only used if the DELIMITED format is selected).
Run interval in seconds	Any string	Polling interval in seconds (default is 300).

Outgoing Email

Outgoing Description

The email sender sends 1Gateway messages as email messages through SMTP. Supports attachments.

Outgoing Configuration

Field name	Supported values	Description
Email server	Any string	Email session property. Email server to connect to
Port number	Any integer	Email session property. Port number
Authenticate	True / false	Email session property. Defines if to authenticate when connecting to the email server with username and password.
Email user	Any valid email address	Email with which to log in to
Password	Any string	Password of the email user
Origin email address	Any valid email address	Origin email address
Default destination email address	Any valid email address	Default destination email for the message.*
Protocol	TLS, SSL, No encryption	Email session property. Protocol used to send emails
Properties filename	Valid filename	(Advanced) If custom properties are needed to create email connection, define them in this file
Destination email	Email address	If the message doesn't contain a "destemail" field, the messages will be sent to this address

• Multiple email addresses can be provided by separating them with a comma, like so: abc@abc.com,abc@def.com,ghi@abc.com

Advanced properties configuration

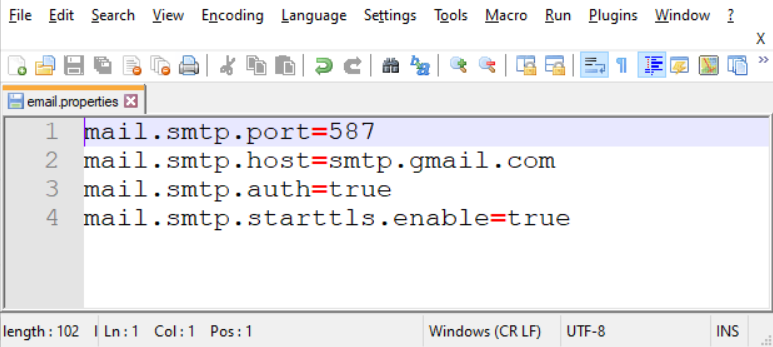

The properties file is used in cases where the fields in the configuration are insufficient. Define the properties filename and create a file with the desired properties. Example of a properties file:

Example of a properties file:

mail.smtp.host=smtp.example.com
mail.smtp.port=587
mail.smtp.auth=true
mail.smtp.starttls.enable=true
mail.smtp.ssl.enable=false

The properties specified in the properties file will take precedence over those defined in the configuration. These fields include:

• Email server (mail.smtp.host)
• Port number (mail.smtp.port)
• Authenticate (mail.smtp.auth)
• Protocol (mail.smtp.starttls.enable, mail.smtp.ssl.enable)

Make sure to define these fields in the email properties file to ensure proper configuration.
