Switch Plugin

The Switch plugin is used in the routing stage of a workflow to direct messages to different processing paths based on configurable conditions. For example, it can be used to differentiate between a new ticket that needs to be inserted into the destination system and an update to an existing ticket.

It uses filters to determine the next destination of a message in the workflow. It allows for dynamic message routing based on predefined conditions.

Key Features​

  • Filters: The switch plugin uses filters to decide where to send the message next.
  • Endpoint Reference: Can reference an endpoint in the endpoint field to access the endpoint configuration.
  • Profiles: Contains profiles with rule definitions to determine the next step in the workflow.

Use Cases​

  • Selective Message Routing: Route messages based on specific criteria.
  • Prioritization: Route messages based on predefined conditions or priorities.

Example Workflow​

  • Insert: If the ticket has no ID and the message is not a feedback message, route to the “PrepareInsert ticket ServiceNow” plugin.
  • Update: If the ticket has an ID and the message is not a feedback message, route to the “PrepareUpdate ticket ServiceNow” plugin.
  • Feedback: If the ticket is a feedback message, route to the “ProcessFeedback ticket ServiceNow” plugin.

Configuration​

Next Hop​

Each rule profile in the Switch Plugin defines a next hop, which determines where the message is sent after it matches the rule.

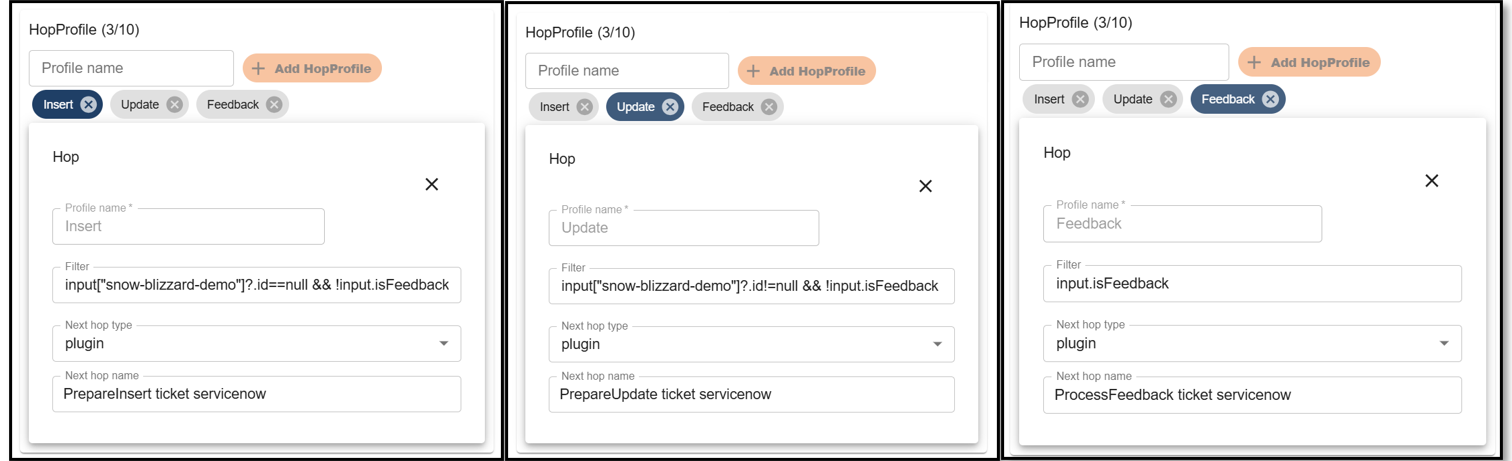

Hop profile config

  • Next Hop: Specifies the name of the next component (usually another plugin) the message should be routed to.
  • Next Hop Type: Indicates the type of the next component (commonly "plugin").
  • Next Hop Name: The specific identifier of the component the message is forwarded to after evaluation.

Filter​

The Switch Plugin uses Groovy expressions to evaluate conditions and determine which route a message should follow.
Each filter expression must return either true or false.

The following variables are available within the filter context:

VariableDescription
messageThe current message object
inputThe message represented as a map
apiThe current plugin API object
substitutionAllows access to substitution-based lookups

Available Filter Context Objects​

input​

Provides direct access to message fields as a map.

Example:

input["endpoint"]?.id != null
message​

Provides access to the message object using object notation.

Example:

message.endpoint?.id == null
substitution​

Allows use of the standard substitution syntax within Groovy filters.

Example:

substitution.substitute("msg:endpoint.id") == "1"

Filter Examples​

Check if a field exists

input["endpoint"]?.id != null

Routes the message only if the endpoint.id field exists.

Check if a field is missing

input["endpoint"]?.id == null

Routes the message only if the endpoint.id field does not exist.

Using the message object

message.endpoint?.id == null

Checks whether the endpoint.id field is missing using object notation.

Using substitutions

substitution.substitute("msg:endpoint.id") == "1"

Evaluates the message field using the substitution engine and compares the result.

Notes​

  • Filters are executed as Groovy expressions.
  • Safe navigation (?.) is recommended to avoid null pointer errors.
  • Any valid Groovy boolean expression can be used.
