Rest Endpoint

A 1Gateway endpoint holds the necessary data to connect to an external system. Endpoints enable seamless communication between 1Gateway and external services.

Endpoint Plugins​

Endpoint plugins can be:

  • Predefined (out-of-the-box) for specific systems.
  • Generic to connect to any external system.

Configuration Fields​

Each endpoint requires specific configuration settings:

  • Base URL – The external system's base URL.
  • Test Path – The path used to test the connection.
  • Expected Response – The expected HTTP status code or message.
  • Authentication Type – The authentication method required.

Authentication Fields​

Depending on the selected authentication method, additional authentication fields must be filled in.

Endpoint Properties​

Endpoints support custom properties that can be referenced by any plugin. These properties can store metadata such as partner information or other integration-specific details.

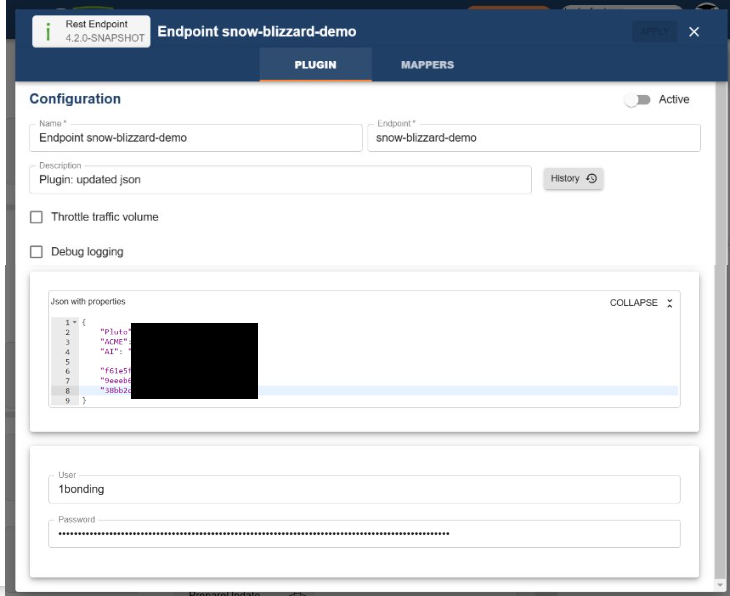

Example: Storing partner information:

Endpoint config

Referencing the Endpoint from Other Plugins​

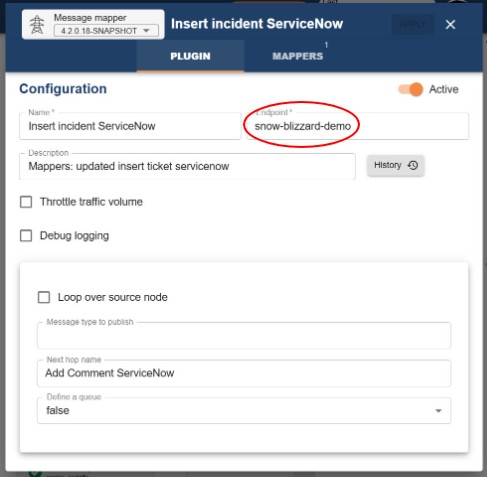

  • The endpoint configuration is used by components that share the same endpoint name.
  • Plugins referencing an endpoint will automatically use its configuration.
  • Any REST calls made from referencing plugins will inherit the authentication settings defined in the endpoint.

Endpoint example

Using Endpoint Fields from Plugins​

Plugins can dynamically reference fields defined in the endpoint configuration using the format: {{endpoint:field_name}}

Examples​

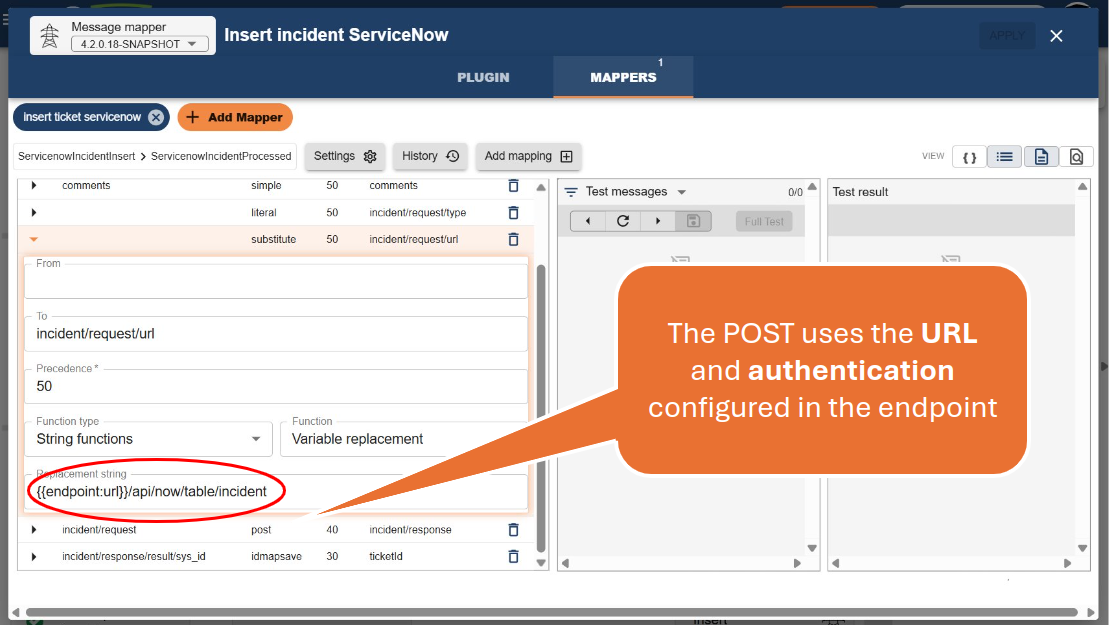

  • For example, to insert a ticket into ServiceNow by referencing the endpoint's base URL: {{endpoint:url}}/api/now/table/incident

Endpoint example

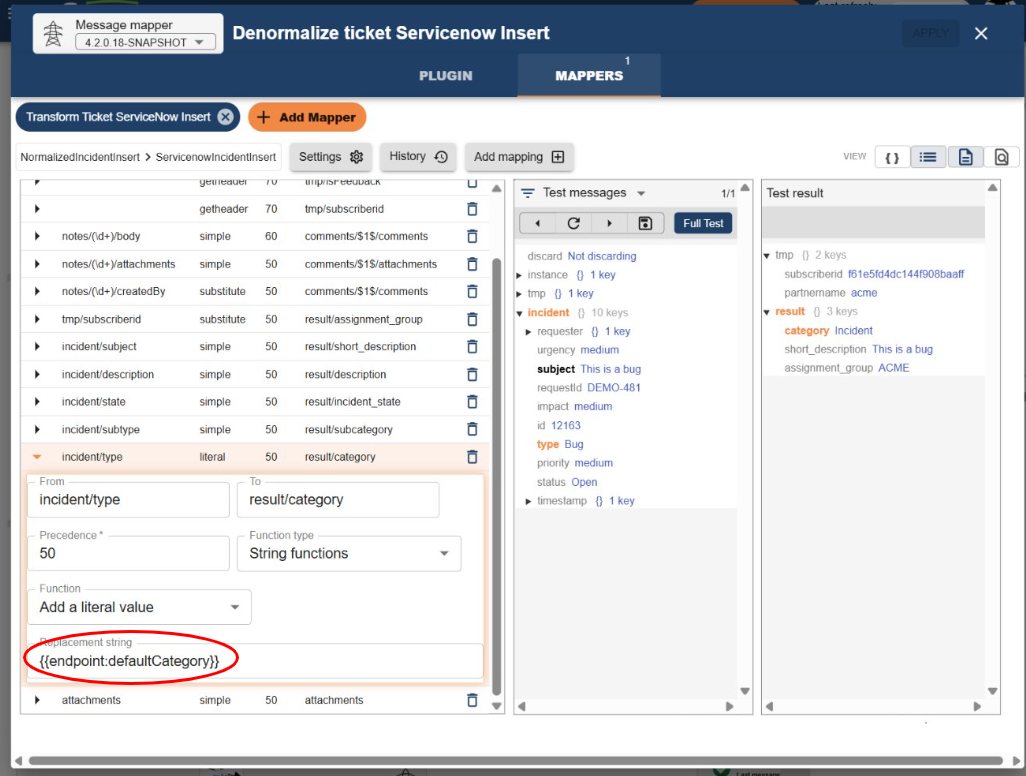

  • To reference a custom field, such as a default category for a ServiceNow incident: {{endpoint:defaultCategory}}

Endpoint example

This allows plugins to remain flexible and decoupled, while still using centralized endpoint configuration.
